• Worm Geared Motor
  • 웜기어드 모터
  •

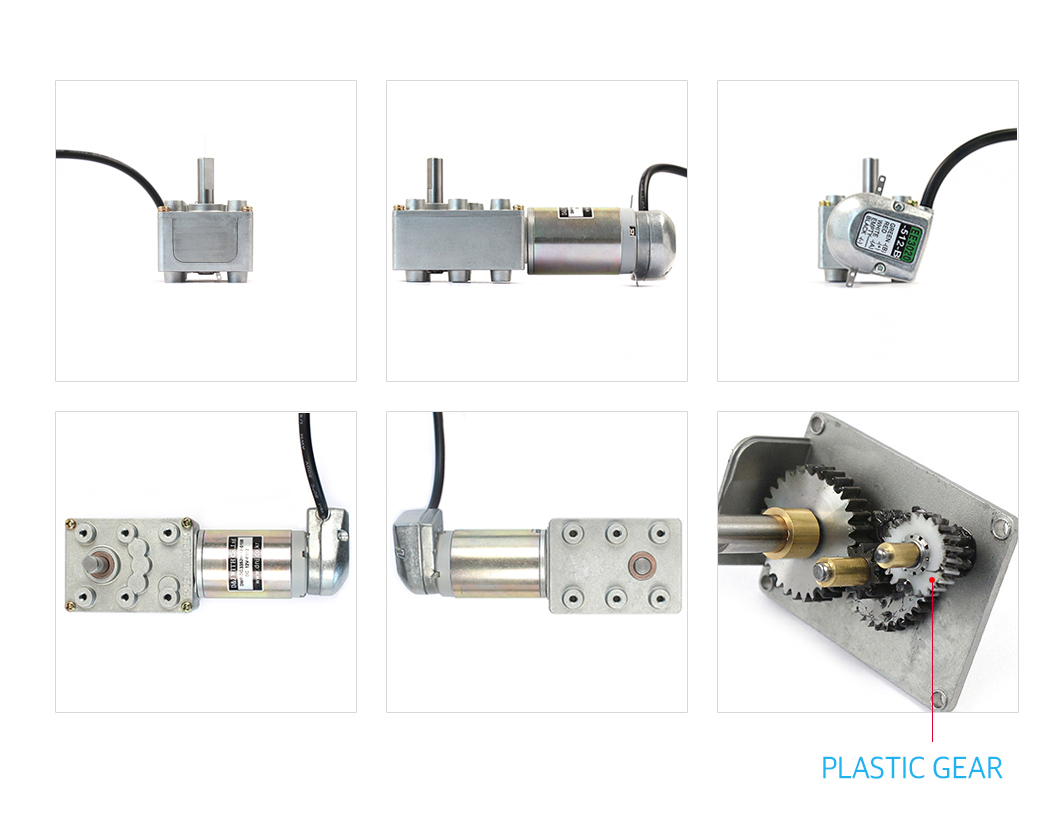

  • ● DWP-DC3352H-24-E512 (Single Shaft)

    제품사양
    - Gear material: PLASTIC
- Voltage: 24V
- Reduction of ratio: 1/48~1/1036 (8kinds)
- Rated torque: 4.4kgf-cm ~ 45kgf-cm
- Rated speed: 155RPM ~ 7.1RPM
- No load speed: 186RPM ~ 8.6RPM
- Weight: 483g
- Install motor: DC 24V / 8,950 RPM / 10.09 W
- Encoder : 512P/R
  • 제품사양
  • - Gear material: PLASTIC
- Voltage: 24V
- Reduction of ratio: 1/48~1/1036 (8kinds)
- Rated torque: 4.4kgf-cm ~ 45kgf-cm
- Rated speed: 155RPM ~ 7.1RPM
- No load speed: 186RPM ~ 8.6RPM
- Weight: 483g
- Install motor: DC 24V / 8,950 RPM / 10.09 W
- Encoder : 512P/R
  • 제품상세

  • <고객적용사례>






    MOTOR (DC 24V)
    정격 토크 Rated torque 132 (gf-cm)
    정격 회전수 Rated speed 7,445 (RPM)
    정격 전류 Rated current 712 (mA)
    무부하 회전수 No load speed 8,950 (RPM)
    무부하 전류 No load current 140 (mA)
    정격 출력 Rated output 10.09 (W)
