• Worm Geared Motor
  • 웜기어드 모터
  •
  • ● DWG-4562-12-B-EN (Double Shaft)

    제품사양

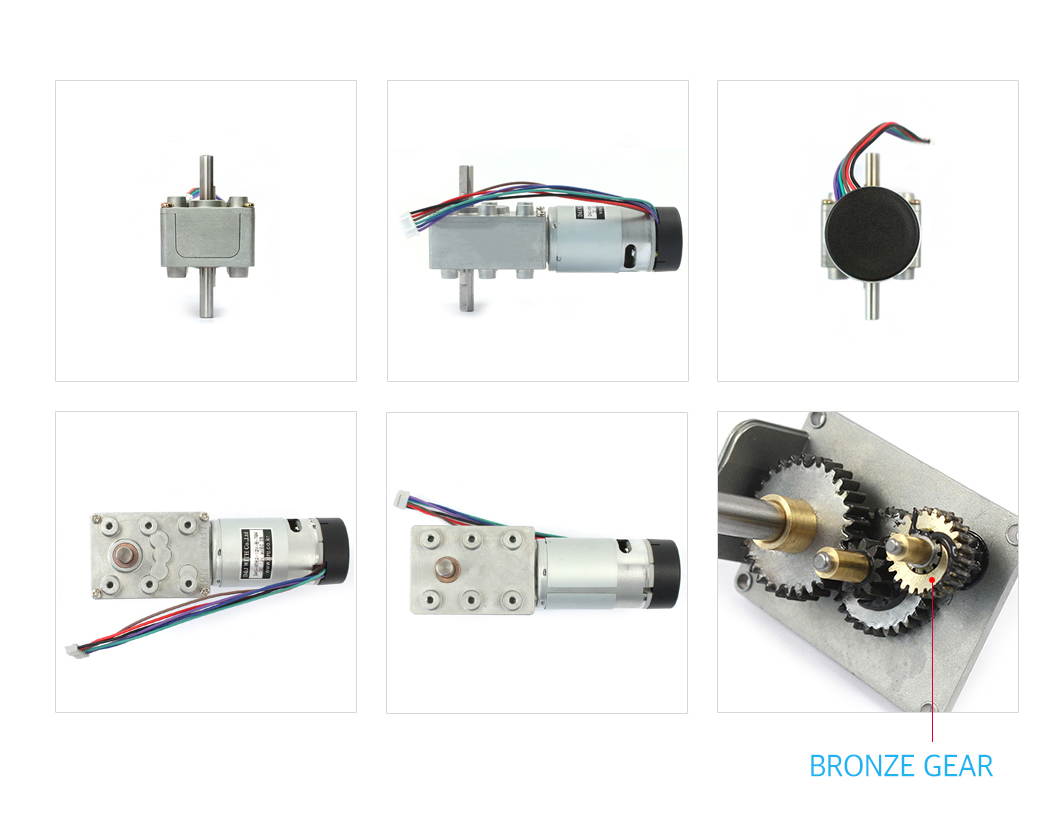

    - Gear material: BRONZE
- Voltage: 12V
- Reduction of ratio: 1/48~1/1036 (13kinds)
- Rated torque: 3kgf-cm ~ 30kgf-cm
- Rated speed: 102RPM ~ 4.9RPM
- No load speed: 125RPM ~ 5.8RPM
- Weight: 524g
- Install motor: DC 12V / 6,000 rpm / 12.8 W
- Encoder spec: 26Pulses ( 13Pulses x 2CH )
  • 제품사양
  • - Gear material: BRONZE
- Voltage: 12V
- Reduction of ratio: 1/48~1/1036 (13kinds)
- Rated torque: 3kgf-cm ~ 30kgf-cm
- Rated speed: 102RPM ~ 4.9RPM
- No load speed: 125RPM ~ 5.8RPM
- Weight: 524g
- Install motor: DC 12V / 6,000 rpm / 12.8 W
- Encoder spec: 26Pulses ( 13Pulses x 2CH )
  • 제품상세

  • <고객적용사례>

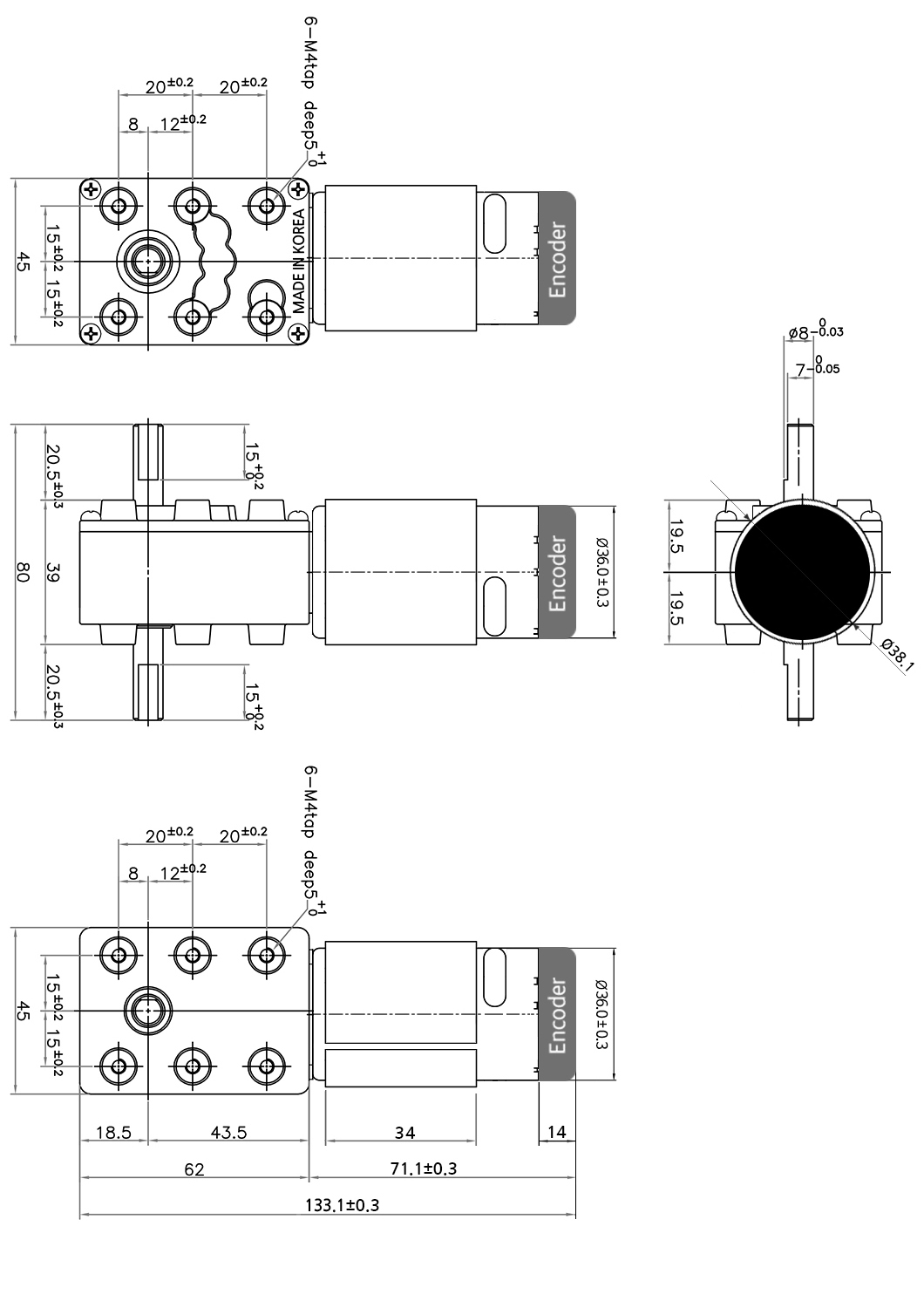

    감속기길이(mm) Gear Head L 62
    중량(g) 520
    감속비 Reduction ratio 1/48 1/66 1/77 1/88 1/99 1/120 1/140 1/170 1/198 1/270 1/360 1/704 1/1036
    DWG-4562-12V 정격토크(kgf-cm)
     Rated torque    		 3 4.1 4.8 5.5 6.1 7.5 8.7 11 12 17 23 30 30
    정격 회전수(RPM)
     Rated speed    		 102 79 64 56 49 41 35 29 24 18 13 7 4.8
    무부하 회전수(RPM)
     No Load speed    		 125 96 77 68 61 50 42 35 30 22 16 8.5 5.8

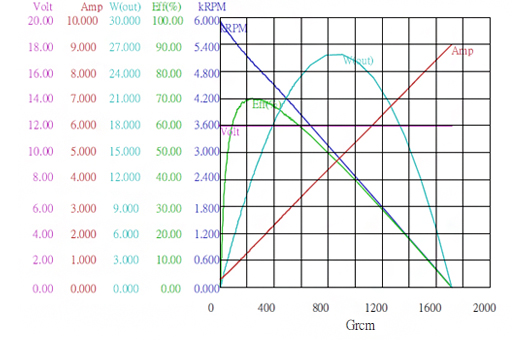

    MOTOR (DC 12V)
    정격 토크 Rated torque 250 (gf-cm)
    정격 회전수 Rated speed 4,930 (RPM)
    정격 전류 Rated current 1,600 (mA)
    무부하 회전수 No load speed 6,000 (RPM)
    무부하 전류 No load current 250 (mA)
    정격 출력 Rated output 12.8 (W)
