• Planetary Geared Motor with Encoder
  • 엔코더 결합형 유성기어 감속모터
  •

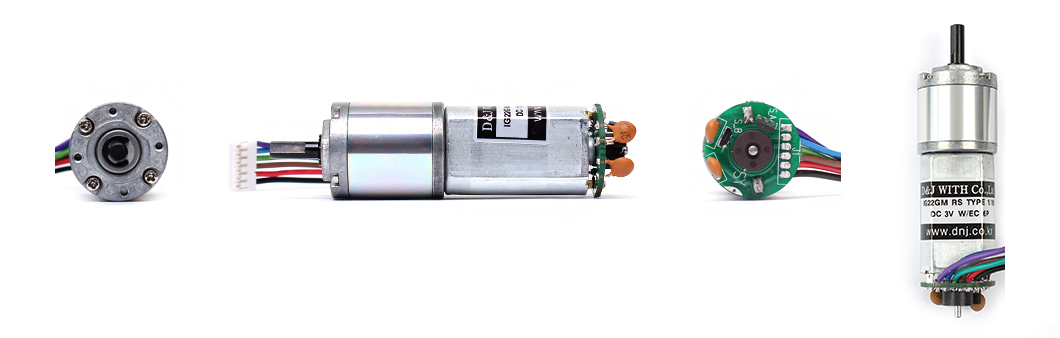

  • IG-22GM RS (3V) with 2channel Encoder

    제품사양
    - Rated Voltage: DC 3V
- Rated Torque: Max. 3Kg-cm

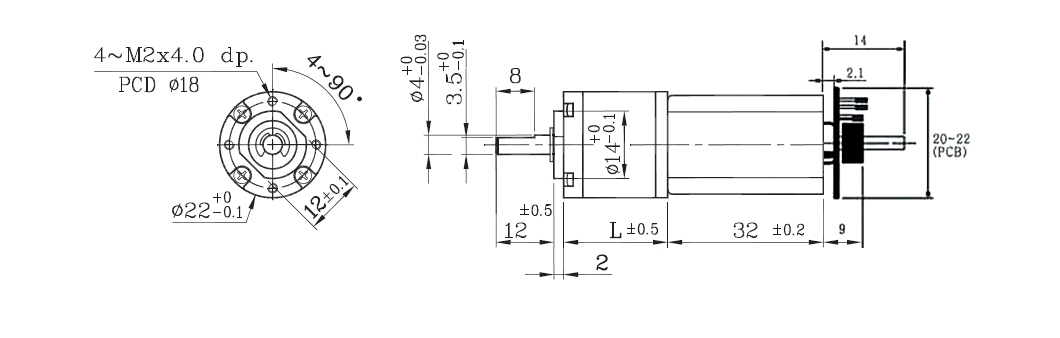

- Size : Ø20.5 * L 32mm
- Shaft : Ø4mm D-cut 0.5mm
- Encoder : 6P/R
  • 제품사양
  • - Rated Voltage: DC 3V
- Rated Torque: Max. 3Kg-cm
- Size : Ø20.5 * L 32mm
- Shaft : Ø4mm D-cut 0.5mm
- Encoder : 6P/R
  • 제품상세
  • 감속기길이(mm) Gear Head L 14.4 18.05 21.7 25.35 29
    중량(g) 58 62 66 71 75
    감속비 Reduction ratio 1/4 1/14 1/16 1/19 1/53 1/62 1/72 1/84 1/104 1/198 1/231 1/270 1/316 1/370 1/455 1/742 1/1014 1/1249 1/1621 1/1996
    IG22GM 3V 정격토크(gf-cm)
     Rated torque    		 62 191 218 259 620 725 842 982 1216 1930 2252 2500 2500 2500 2500 3000 3000 3000 3000 3000
    정격 회전수(RPM)
     Rated speed    		 1887 539 471 397 142 121 104 89 72 38 32 27 23 20 16 10 7.4 6 4.6 3.7
    무부하 회전수(RPM)
     No Load speed    		 2250 642 562 473 169 145 125 107 86 45 39 33 28 24 19.7 12.1 8.8 7.2 5.5 4.5

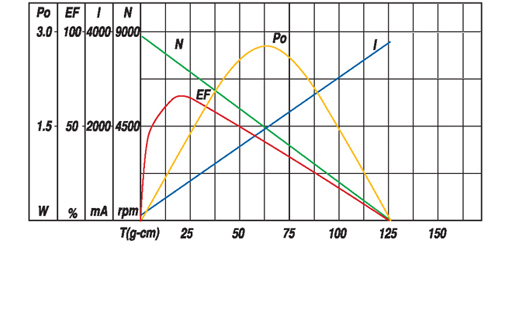

    MOTOR (DC 3V)
    정격 토크 Rated torque 19.5 (gf-cm)
    정격 회전수 Rated speed 7,550 (RPM)
    정격 전류 Rated current 750 (mA)
    무부하 회전수 No load speed 9,000 (RPM)
    무부하 전류 No load current 150 (mA)
    정격 출력 Rated output 1.52 (W)
