• Planetary Geared Motor with Encoder
  • 엔코더 결합형 유성기어 감속모터
  •

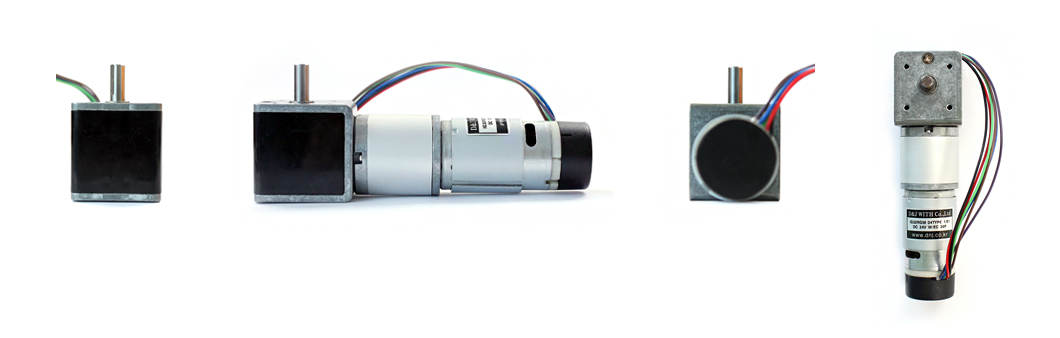

  • IG-32RGM 04TYPE (24V) with 2channel Encoder

    제품사양
    - Rated Voltage: DC 24V
- Rated Torque: Max. 12Kg-cm
- Applications Motor : Bevel Gear Box로 IG32,32PGM Sereies와 결합됨
- Encoder : 26P/R
  • 제품사양
  • - Rated Voltage: DC 24V
- Rated Torque: Max. 12Kg-cm
- Applications Motor : Bevel Gear Box로 IG32,32PGM Sereies와 결합됨
- Encoder : 26P/R
  • 제품상세

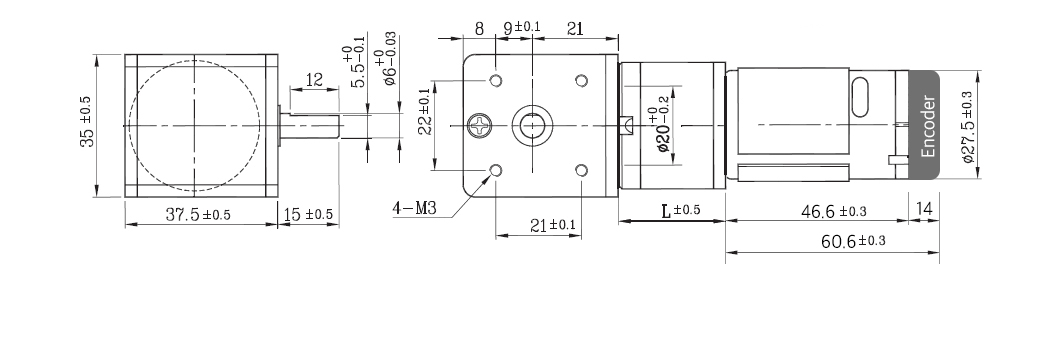

  • 감속기길이(mm) Gear Head L 20.6 27.0 33.4 39.8
    중량(g) 310 330 355 381
    감속비 Reduction ratio 1/5 1/14 1/19 1/27 1/35 1/51 1/71 1/100 1/139 1/189 1/264 1/516 1/721 1/939
    04 TYPE 24V 정격토크(kgf-cm)
     Rated torque    		 0.47 1.1 1.5 2.1 3.1 3.3 4.6 6.4 9.0 9.8 12 12 12 12
    정격 회전수(RPM)
     Rated speed    		 1170 445 320 229 176 120 87 62 45 34 25 13 9.6 6.5
    무부하 회전수(RPM)
     No Load speed    		 1460 521 384 270 208 143 102 73 52 38 27 14 10 7.7

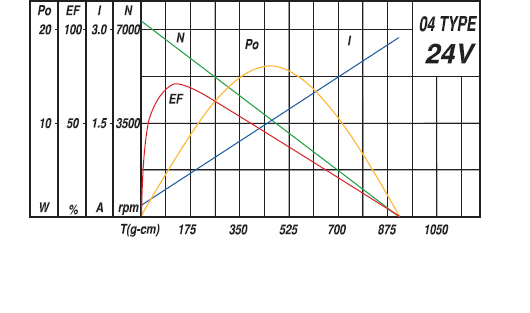

    04 TYPE MOTOR (DC 24V)
    정격 토크 Rated torque 130 (gf-cm)
    정격 회전수 Rated speed 6,160 (RPM)
    정격 전류 Rated current 500 (mA)
    무부하 회전수 No load speed 7,300 (RPM)
    무부하 전류 No load current 80 (mA)
    정격 출력 Rated output 8.5 (W)
