• BLDC Geared Motor with Encoder
  • 엔코더 결합형 BLDC 모터
  •

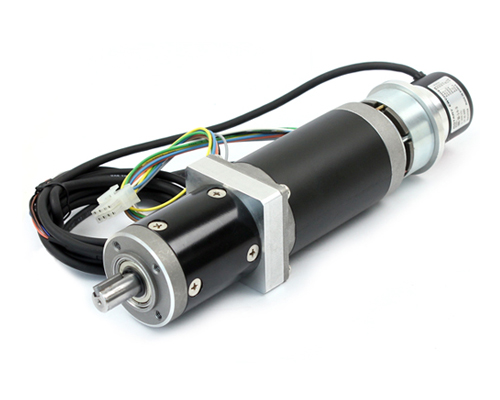

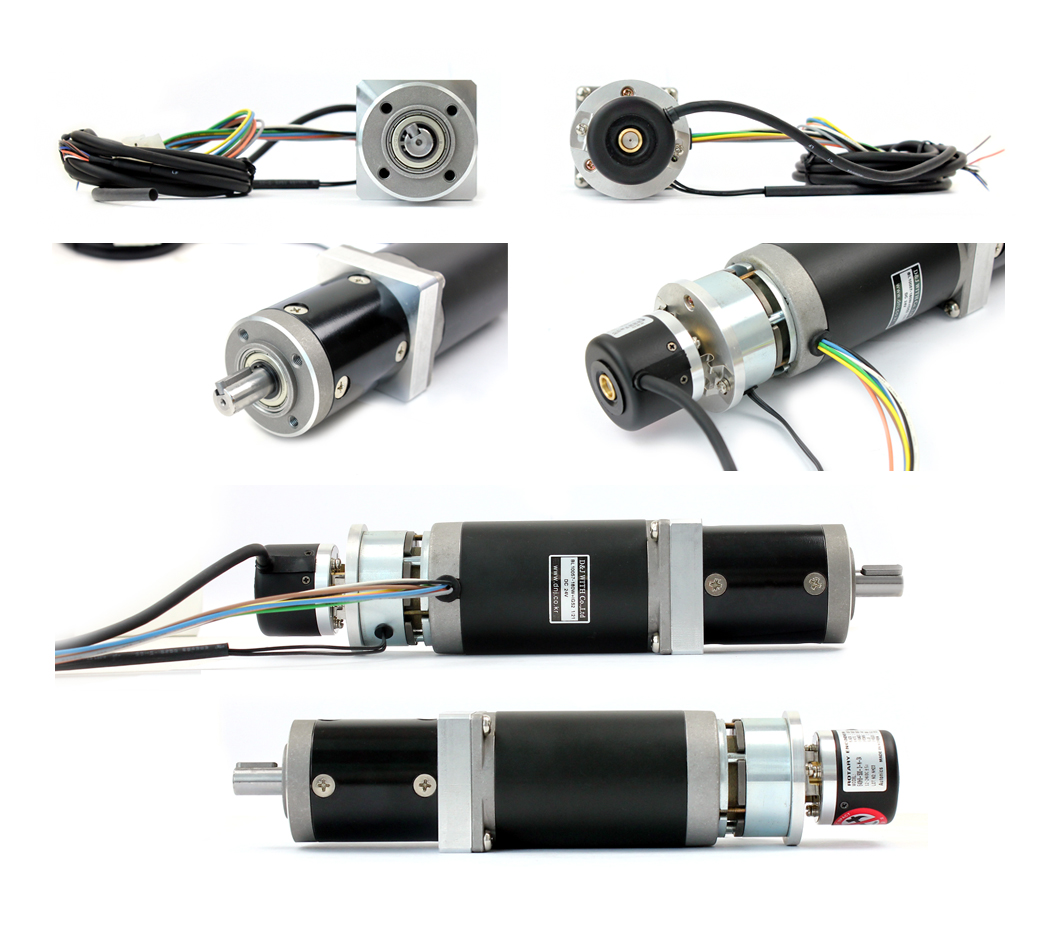

  • BL10057 (180W) + IG52 with Encoder & Brake

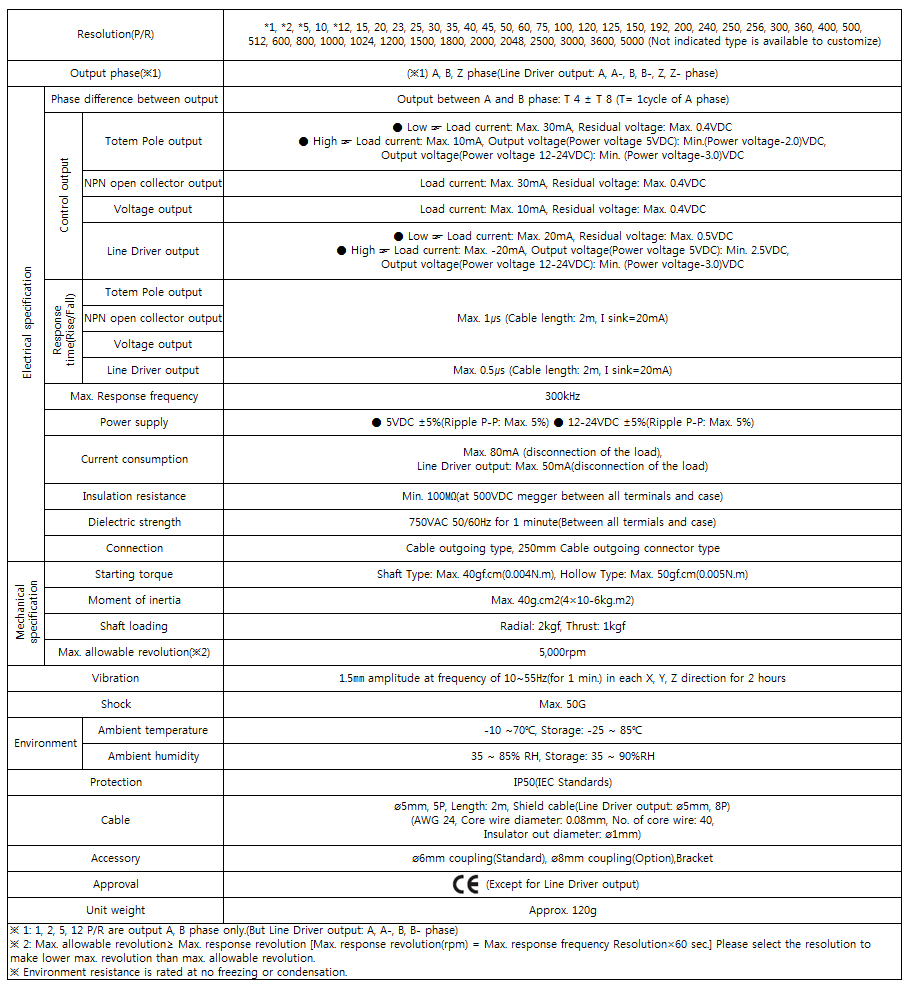

    제품사양
    - Rated voltage : DC 24V
- Rated output : 180 W
- Rated torque : 3.57 Kgf-cm
- Rated current : 10 AMP
- No load speed : 6,900 rpm
  • 제품사양
  • - Rated voltage : DC 24V
- Rated output : 180 W
- Rated torque : 3.57 Kgf-cm
- Rated current : 10 AMP
- No load speed : 6,900 rpm

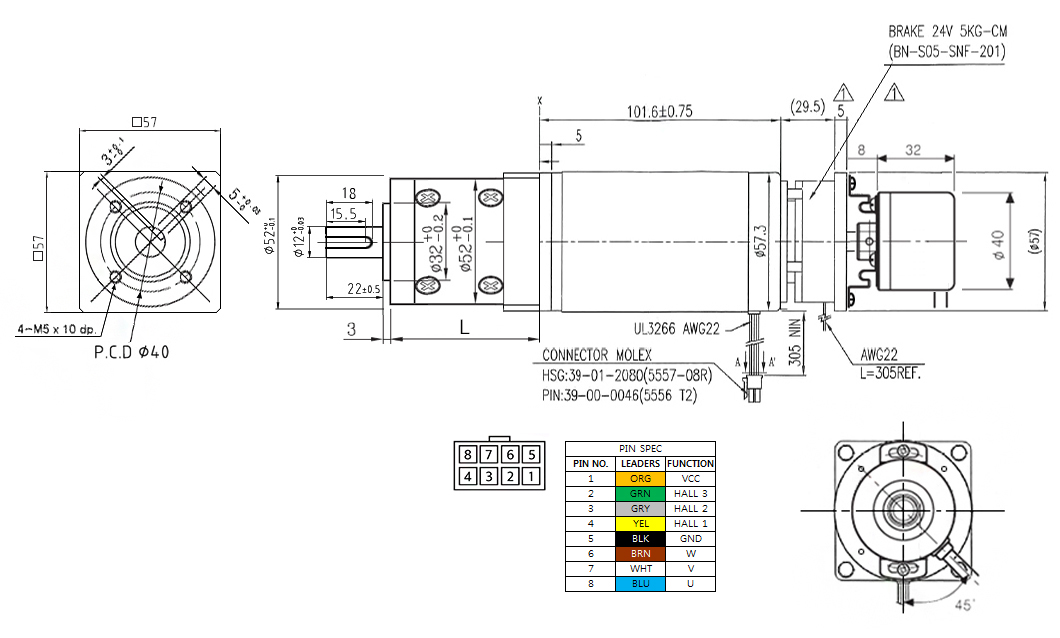

  • 제품상세
  • 감속기길이(mm) Gear Head L 60.6 76.1 91.6 107.1
    중량(g) 2038 2223 2413 2583
    감속비 Reduction ratio 1/3 1/4 1/12 1/15 1/19 1/21 1/26 1/43 1/53 1/66 1/81 1/100 1/113 1/126 1/150 1/260 1/285 1/353 1/488 1/546 1/676 1/756 1/936

    10057-180W-24V

    		 정격토크 (kgf-cm)
    Rated torque    		 8.5 11.4 29.9 37.4 47.4 50 50 92.1 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
    정격 회전수(RPM)
    Rated speed    		 1716 1287 429 343 271 245 198 119 97.1 78 63.5 51.5 45.5 40.8 34.3 22.3 18 14.5 10.5 9.4 7.6 6.8 5.5
    무부하 회전수(RPM)
    No Load speed    		 2300 1725 575 460 363 328 265 160 130 104 85.1 69 61 54.7 46 30 24.2 19.5 14.1 12.6 10.2 9.1 7.3



    BL10057-180W MOTOR (DC24V)
    PARAMETER SYMBOL UNITS VALUE TOLERANCE
    RATED VOLTAGE V VOLTS 24 Normal
    NO LOAD SPEED SNL RPM 6900 ± 10%
    RATED TORQUE TC Kg-cm 3.57 Normal
    RATED SPEED SC RPM 5150 ± 10%
    RATED CURRENT IC AMP 10 ± 10%
    RATED POWER Pout W 180 Normal
    PEAK TORQUE TP Kg-cm 13.66 Min
    PEAK CURRENT IP AMP 29.0 Max
    VOLTAGE CONSTANT KE V/rad/sec 0.033 ± 10%
    RESISTANCE R OHM 0.2 ± 10%
    INERTIA JM g-cm2 500 ± 10%
    WEIGHT W Kg 1.5 Max
    AMBENT TEMPERATURE T ℃ -10~+60 TYP
