• Worm Geared Motor
  • 웜기어드 모터
  •
  • DWG-4562-24-B (Double Shaft)

    제품사양

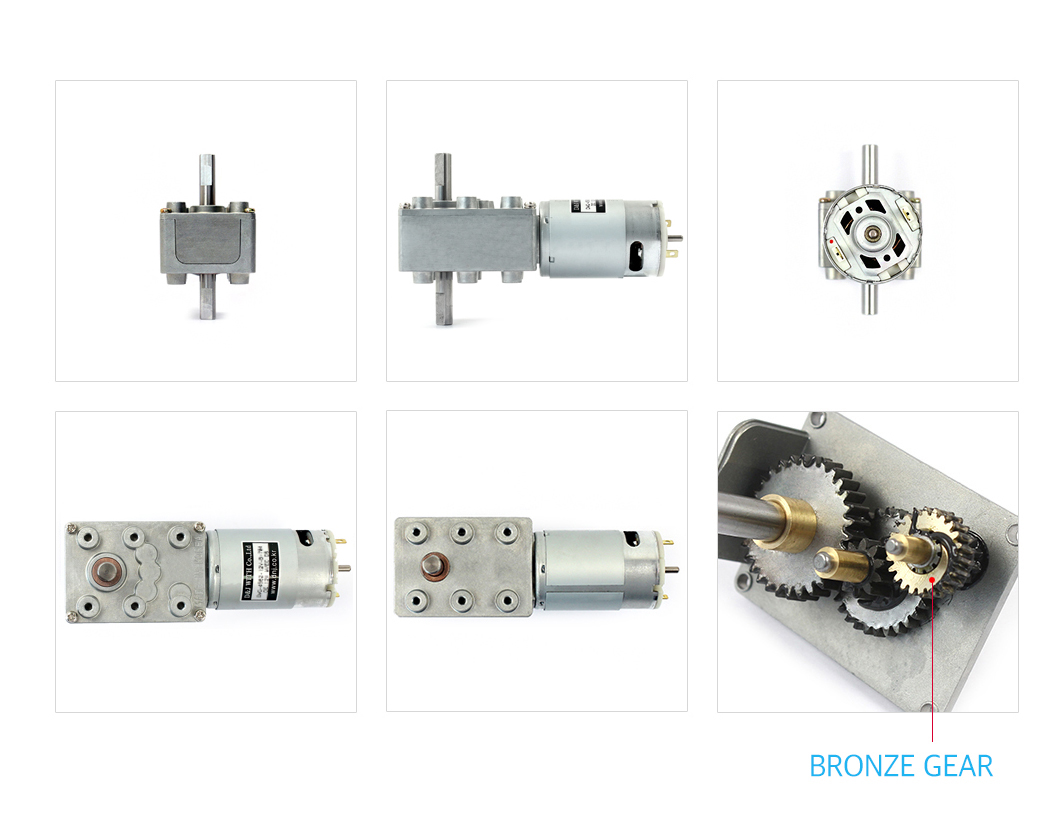

    - Gear material: BRONZE
    - Voltage: 24V
    - Reduction of ratio: 1/48~1/1036 (13kinds)
    - Rated torque: 7.2kgf-cm ~ 45kgf-cm
    - Rated speed: 107RPM ~ 5RPM
    - No load speed: 125RPM ~ 5.8RPM
    - Weight: 520g
    - Install motor: DC 24V / 6,000 rpm / 13.2 W
    - Related driver: DCS-30090, DCD-24V03A,DCS-30090-CN,DCD-24V03A-V2
  • 제품사양
  • - Gear material: BRONZE
    - Voltage: 24V
    - Reduction of ratio: 1/48~1/1036 (13kinds)
    - Rated torque: 7.2kgf-cm ~ 45kgf-cm
    - Rated speed: 107RPM ~ 5RPM
    - No load speed: 125RPM ~ 5.8RPM
    - Weight: 520g
    - Install motor: DC 24V / 6,000 rpm / 13.2 W
    - Related driver: DCS-30090, DCD-24V03A,DCS-30090-CN,DCD-24V03A-V2
  • 제품상세

  • <고객적용사례>

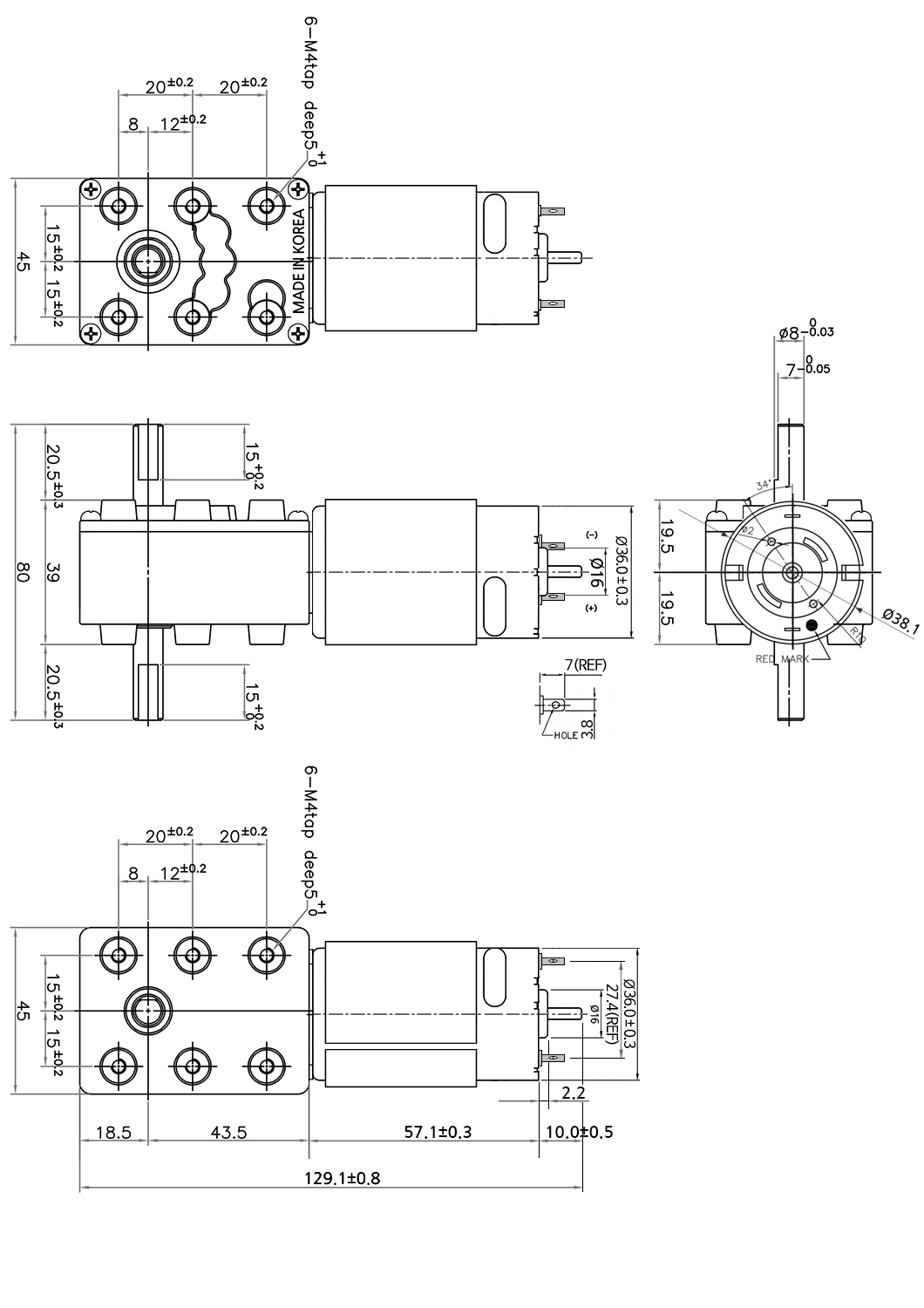

    감속기길이(mm) Gear Head L 62
    중량(g) 520
    감속비 Reduction ratio 1/48 1/66 1/77 1/88 1/99 1/120 1/140 1/170 1/198 1/270 1/360 1/704 1/1036
    DWG-4562-24V 정격토크(kgf-cm)

    Rated torque
    7.2 9.9 12 13 15 18 21 26 30 34 45 45 45
    정격 회전수(RPM)

    Rated speed
    107 78 67 59 52 43 37 30 26 19 14 7.3 5
    무부하 회전수(RPM)

    No Load speed
    125 91 78 68 61 50 43 35 30 22 17 8.5 5.8

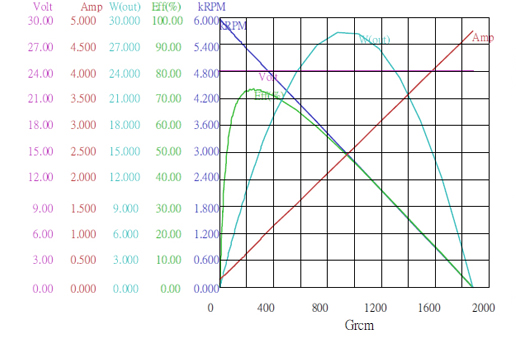

    MOTOR (DC 24V)
    정격 토크 Rated torque 250 (gf-cm)
    정격 회전수 Rated speed 5,150 (RPM)
    정격 전류 Rated current 1.1 (A)
    무부하 회전수 No load speed 6,000 (RPM)
    무부하 전류 No load current 250 (mA)
    정격 출력 Rated output 12.8 (W)
