• Worm Geared Motor
  • 웜기어드 모터
  •
  • DWCG-4562-12-B (Double Shaft)

    제품사양

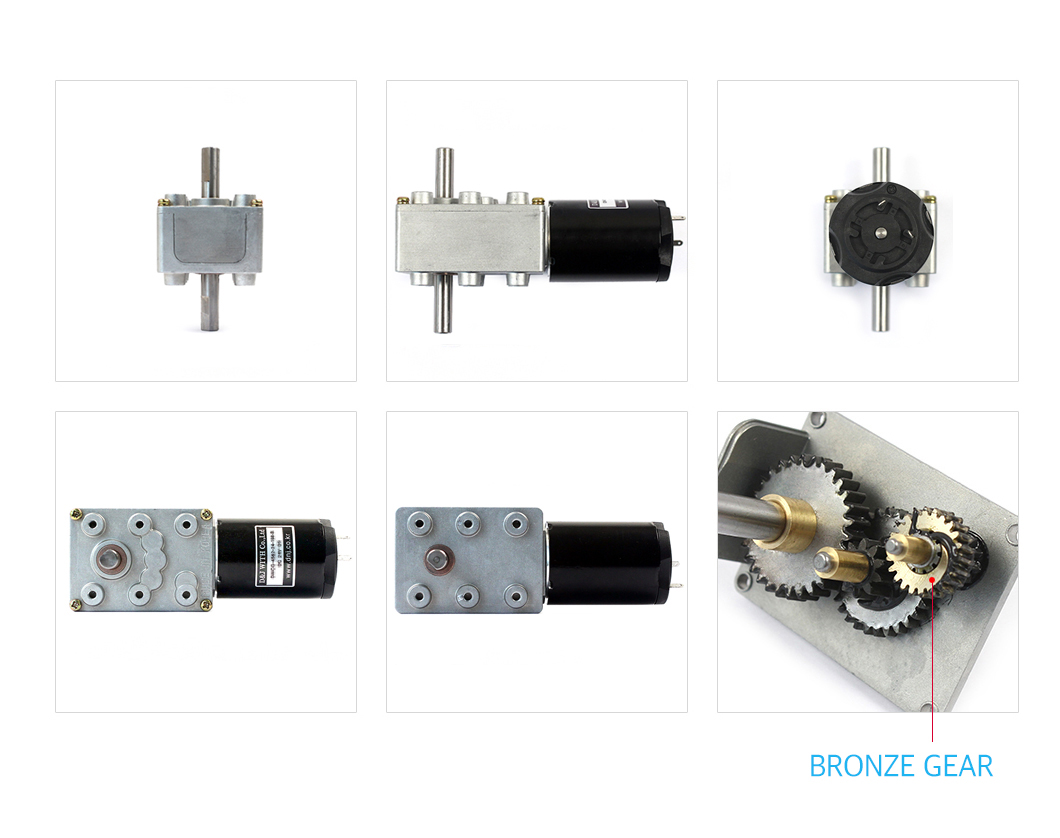

    - Gear material: BRONZE
    - Voltage: 12V

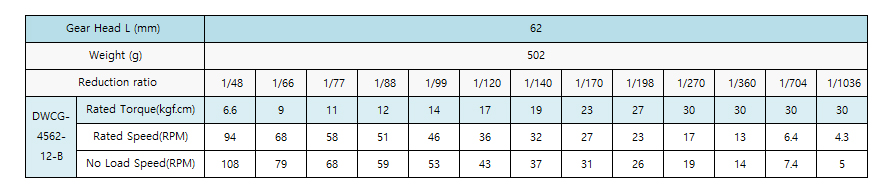

    - Reduction of ratio: 1/48~1/1036 (8kinds)
    - Rated torque: 15.8kgf-cm ~ 45kgf-cm
    - Rated speed: 91.6RPM ~ 4.2RPM
    - No load speed: 106.2RPM ~ 4.9RPM
    - Weight: 502g
    - Install motor: DC 12V / 4,400 rpm / 25 W
  • 제품사양
  • - Gear material: BRONZE
    - Voltage: 12V
    - Reduction of ratio: 1/48~1/1036 (8kinds)
    - Rated torque: 15.8kgf-cm ~ 45kgf-cm
    - Rated speed: 91.6RPM ~ 4.2RPM
    - No load speed: 106.2RPM ~ 4.9RPM
    - Weight: 502g
    - Install motor: DC 12V / 4,400 rpm / 25 W
  • 제품상세

  • <고객적용사례>






    MOTOR (DC 12V)
    정격 토크 Rated torque 550 (gf-cm)
    정격 회전수 Rated speed 4,400 (RPM)
    정격 전류 Rated current 2.7 (A)
    무부하 회전수 No load speed 5,100 (RPM)
    무부하 전류 No load current 500 (mA)
    정격 출력 Rated output 25 (W)
