• Worm Geared Motor
  • 웜기어드 모터
  •

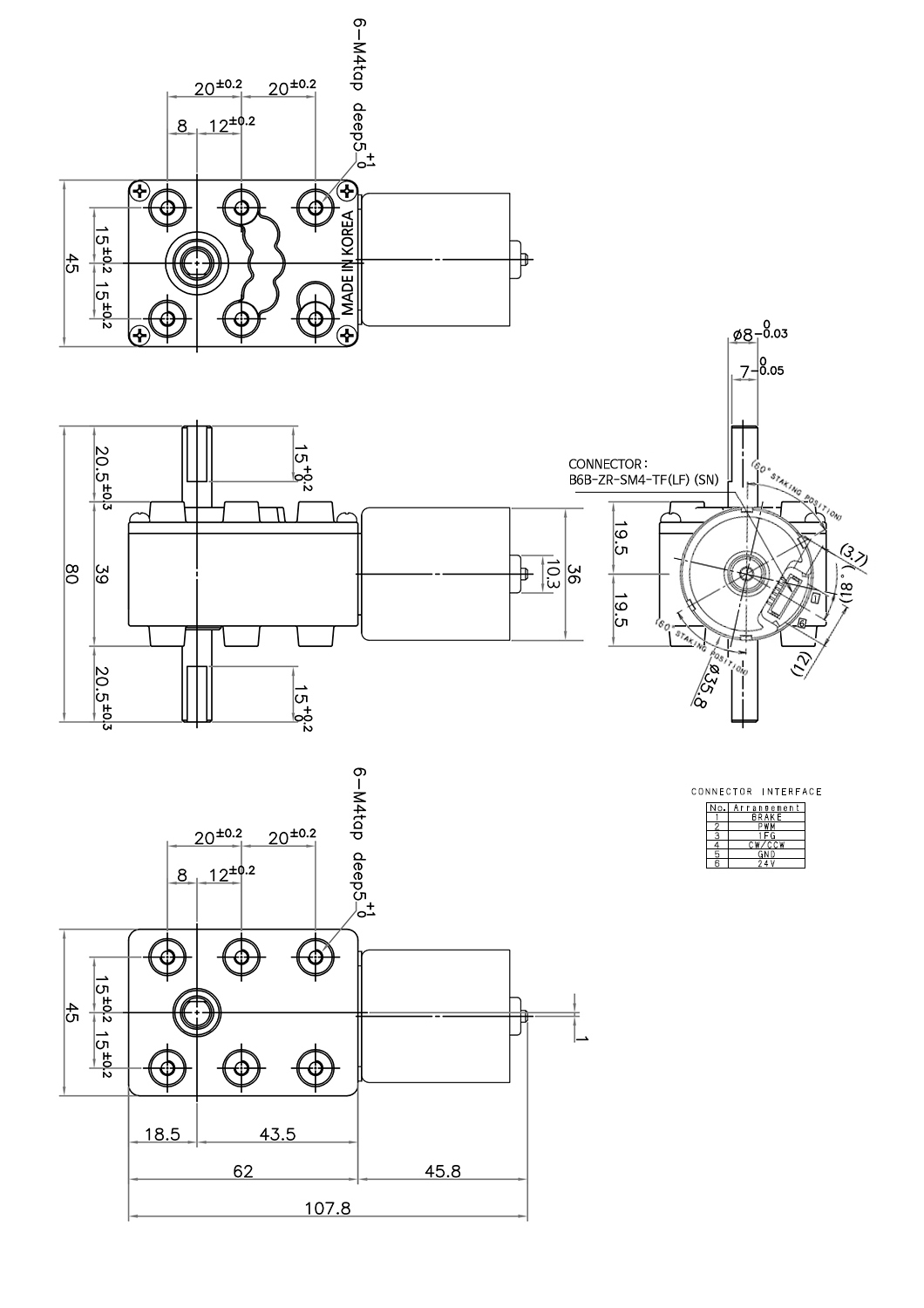

  • DWBG-4562-24-B (Double Shaft)

    제품사양

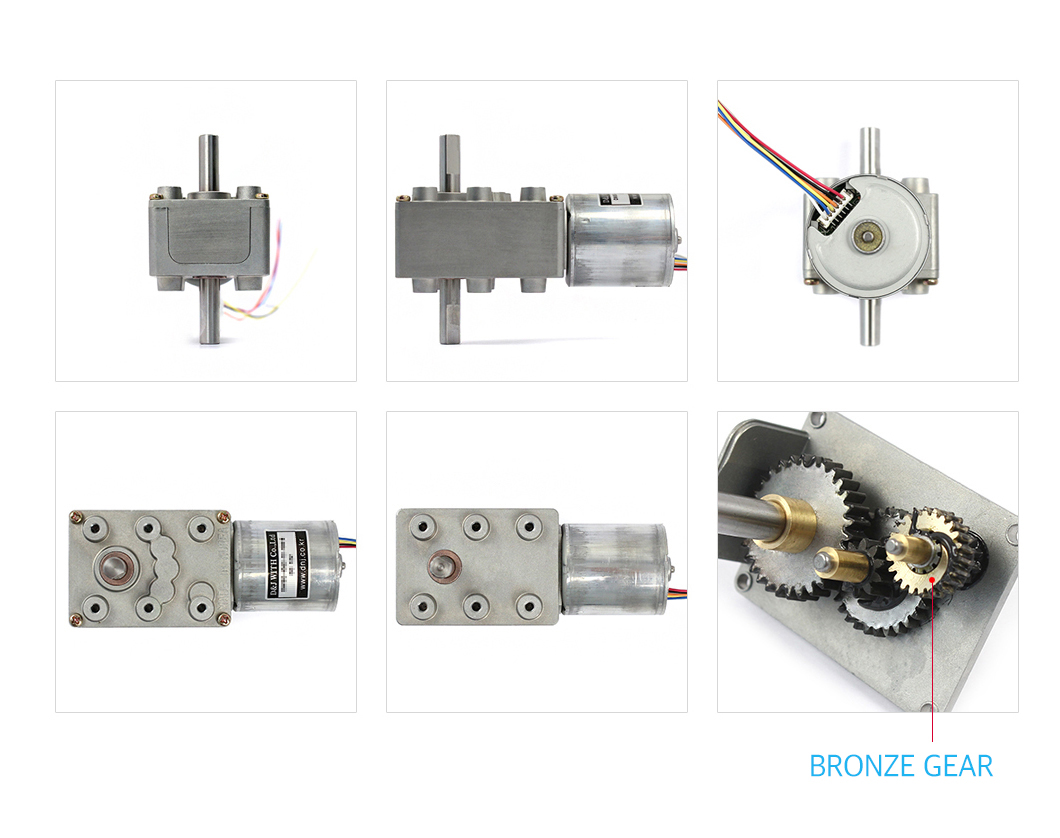

    - Gear material: BRONZE
    - Voltage: 24V

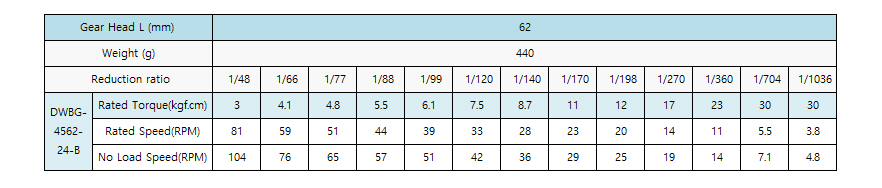

    - Reduction of ratio: 1/48~1/1036 (8kinds)
    - Rated torque: 7.2kgf-cm ~ 45kgf-cm
    - Rated speed: 81RPM ~ 3.3RPM
    - No load speed: 104RPM ~ 4.8RPM
    - Weight: 440g
    - Install motor: DC 24V / 5,000 rpm / 10 W
    - Related driver: BLC-22H06P,DCS-30090-CN,DCD-24V03A-V2
  • 제품사양
  • - Gear material: BRONZE
    - Voltage: 24V
    - Reduction of ratio: 1/48~1/1036 (8kinds)
    - Rated torque: 7.2kgf-cm ~ 45kgf-cm
    - Rated speed: 81RPM ~ 3.3RPM
    - No load speed: 104RPM ~ 4.8RPM
    - Weight: 440g
    - Install motor: DC 24V / 5,000 rpm / 10 W
    - Related driver: BLC-22H06P,DCS-30090-CN,DCD-24V03A-V2
  • 제품상세

  • <고객적용사례>

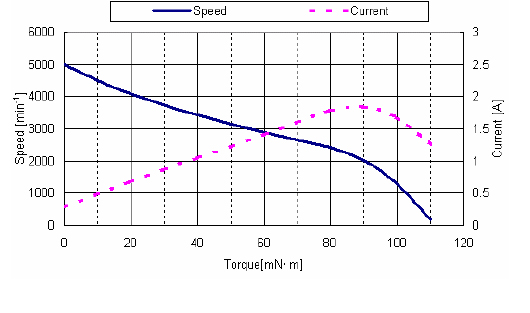

    BLDC MOTOR (DC 24V)
    정격 토크 Rated torque 250 (gf-cm)
    정격 회전수 Rated speed 3,900 (RPM)
    정격 전류 Rated current 900 (mA)
    무부하 회전수 No load speed 5,000 (RPM)
    무부하 전류 No load current 360 (mA)
    정격 출력 Rated output 10 (W)
