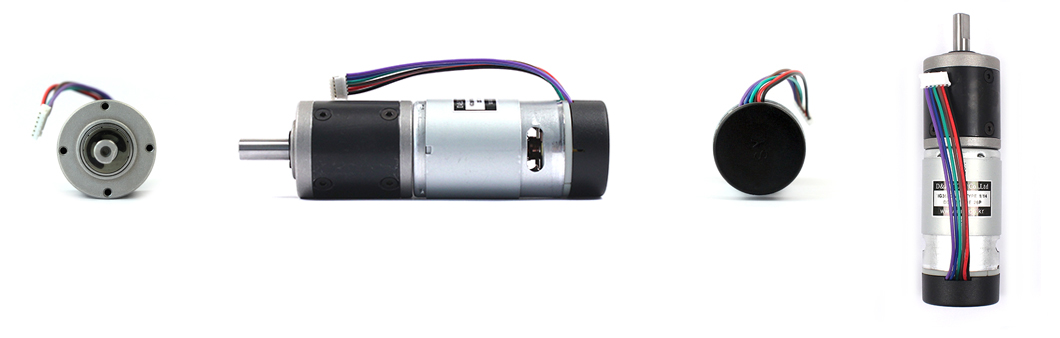

• Planetary Geared Motor with Encoder
  • 엔코더 결합형 유성기어 감속모터
  •
  • IG-36PGM 05TYPE (12V) with Encoder

    제품사양
    - Rated Voltage: DC 12V
    - Rated Torque: 0.76 kgf-cm ~ 30 Kgf-cm

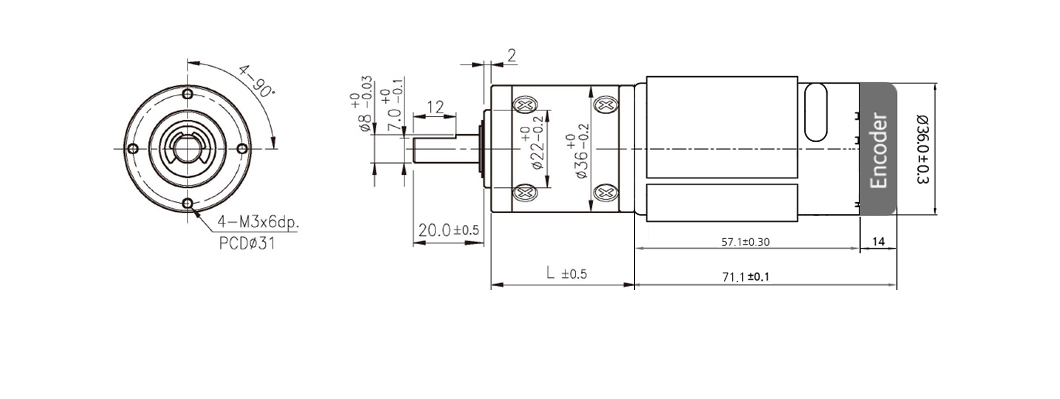

    - Size : Ø36.3 * L 65.3mm
    - Shaft : Ø8mm D-cut 1mm
    - Encoder : 26Pulses(13Pulses x 2CH)
  • 제품사양
  • - Rated Voltage: DC 12V
    - Rated Torque: 0.76 kgf-cm ~ 30 Kgf-cm
    - Size : Ø36.3 * L 65.3mm
    - Shaft : Ø8mm D-cut 1mm
    - Encoder : 26Pulses(13Pulses x 2CH)
  • 제품상세
  • 감속기길이(mm) Gear Head L 33.1 41.8 50.5 59.2
    중량(g) 302 336 370 404
    감속비 Reduction ratio 1/4 1/5 1/14 1/19 1/27 1/51 1/71 1/100 1/139 1/189 1/264 1/516 1/721
    05 TYPE 12V 정격토크(kgf-cm)
    Rated torque
    0.76 0.96 2.3 3.2 4.5 7.3 10.2 14.4 20 22.6 25 30 30
    정격 회전수(RPM)
    Rated speed
    1338 1070 382 281 198 104 75 53 38 28 20 10.3 7.4
    무부하 회전수(RPM)
    No Load speed
    1500 1200 428 315 222 117 84 60 43 31 22 11.6 8.3

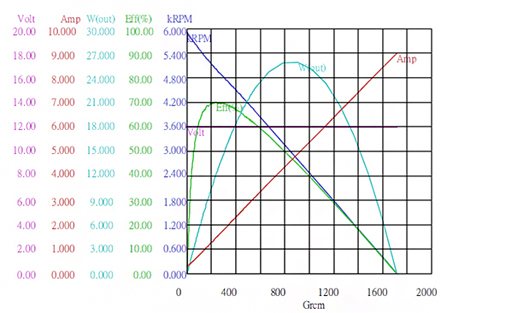

    05 TYPE MOTOR (DC 12V)
    정격 토크 Rated torque 240 (gf-cm)
    정격 회전수 Rated speed 5,100 (RPM)
    정격 전류 Rated current 2 (A)
    무부하 회전수 No load speed 6,000 (RPM)
    무부하 전류 No load current 400 (mA)
    정격 출력 Rated output 12.5 (W)
