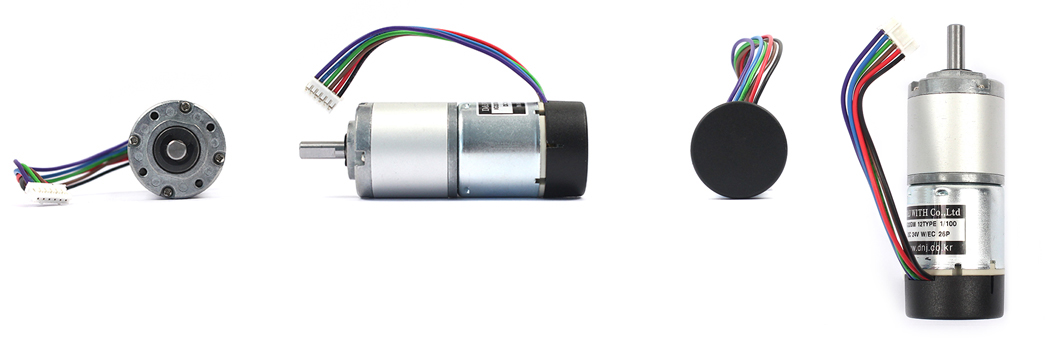

• Planetary Geared Motor with Encoder
  • 엔코더 결합형 유성기어 감속모터
  •
  • IG-32GM 12TYPE (24V) with 2channel Encoder

    제품사양
    - Rated Voltage: DC 24V
    - Rated Torque: Max. 12Kg-cm
    - Size : Ø32.2 * L 43.3mm
    - Shaft : Ø6mm D-cut 0.5mm
    - Encoder : 26Pulses(13Pulses x 2CH)
  • 제품사양
  • - Rated Voltage: DC 24V
    - Rated Torque: Max. 12Kg-cm
    - Size : Ø32.2 * L 43.3mm
    - Shaft : Ø6mm D-cut 0.5mm
    - Encoder : 26Pulses(13Pulses x 2CH)
  • 제품상세
  • 감속기길이(mm) Gear Head L 20.6 27 33.4 39.8
    중량(g) 174 194 219 245
    감속비 Reduction ratio 1/5 1/14 1/19 1/27 1/51 1/71 1/100 1/139 1/189 1/264 1/516 1/721
    12 TYPE 24V 정격토크(kgf-cm)
    Rated torque
    0.24 0.6 0.82 1.17 1.89 2.6 3.72 5.1 5.8 8.1 12 12
    정격 회전수(RPM)
    Rated speed
    1000 357.1 263.1 185.1 98 70.4 50 35.9 26.4 18.9 9.6 6.9
    무부하 회전수(RPM)
    No Load speed
    1240 442.8 326.3 229.6 121.5 87.3 62 44.6 32.8 23.4 12 8.5



    12TYPE MOTOR (DC 24V)
    정격 토크 Rated torque 62 (gf-cm)
    정격 회전수 Rated speed 5,000 (RPM)
    정격 전류 Rated current 210 (mA)
    무부하 회전수 No load speed 6,200 (RPM)
    무부하 전류 No load current 60 (mA)
    정격 출력 Rated output 3.17 (W)
