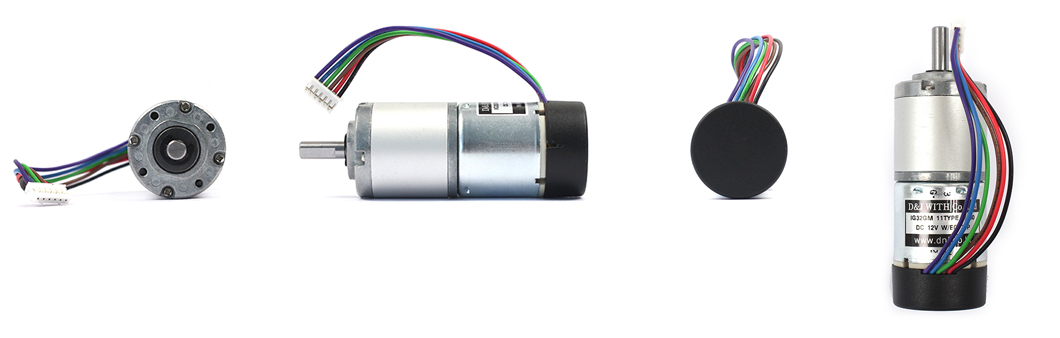

• Planetary Geared Motor with Encoder
  • 엔코더 결합형 유성기어 감속모터
  •
  • IG-32GM 11TYPE (12V) with 2channel Encoder

    제품사양
    - Rated Voltage: DC 12V
    - Rated Torque: Max. 12Kg-cm

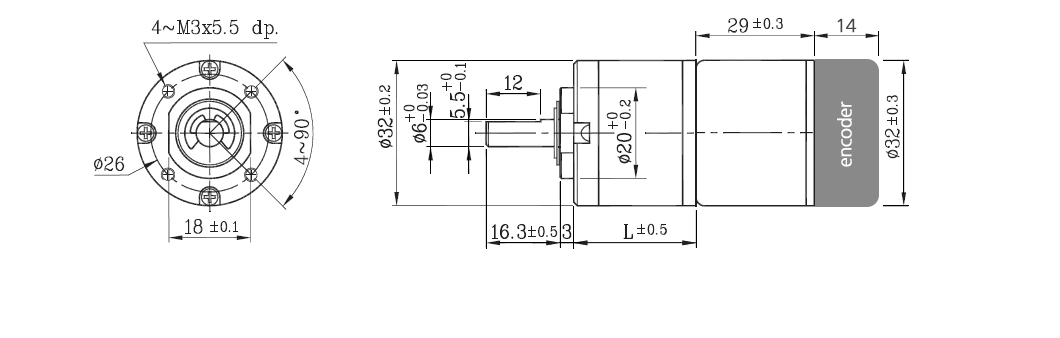

    - Size : Ø32.2 * L 43.3mm
    - Shaft : Ø6mm D-cut 0.5mm
    - Encoder : 26Pulses(13Pulses x 2CH)
  • 제품사양
  • - Rated Voltage: DC 12V
    - Rated Torque: Max. 12Kg-cm
    - Size : Ø32.2 * L 43.3mm
    - Shaft : Ø6mm D-cut 0.5mm
    - Encoder : 26Pulses(13Pulses x 2CH)
  • 제품상세
  • 감속기길이(mm) Gear Head L 20.6 27 33.4 39.8
    중량(g) 174 194 219 245
    감속비 Reduction ratio 1/4 1/5 1/14 1/19 1/27 1/51 1/71 1/100 1/139 1/189 1/264 1/516 1/721
    11 TYPE 12V 정격토크(kgf-cm)
    Rated torque
    0.19 0.24 0.58 0.79 1.1 1.8 2.5 3.6 5 5.6 7.9 12 12
    정격 회전수(RPM)
    Rated speed
    1275 1020 364.2 268.4 188.8 100 71.8 51 36.6 26.9 19.3 9.8 7
    무부하 회전수(RPM)
    No Load speed
    1550 1240 442.8 326.3 229.6 121.5 87.3 62 44.6 32.8 23.4 12 8.5

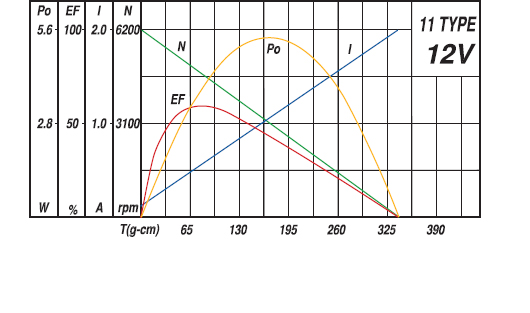

    11TYPE MOTOR (DC 12V)
    정격 토크 Rated torque 60 (gf-cm)
    정격 회전수 Rated speed 5,100 (RPM)
    정격 전류 Rated current 470 (mA)
    무부하 회전수 No load speed 6,200 (RPM)
    무부하 전류 No load current 120 (mA)
    정격 출력 Rated output 3.14 (W)
