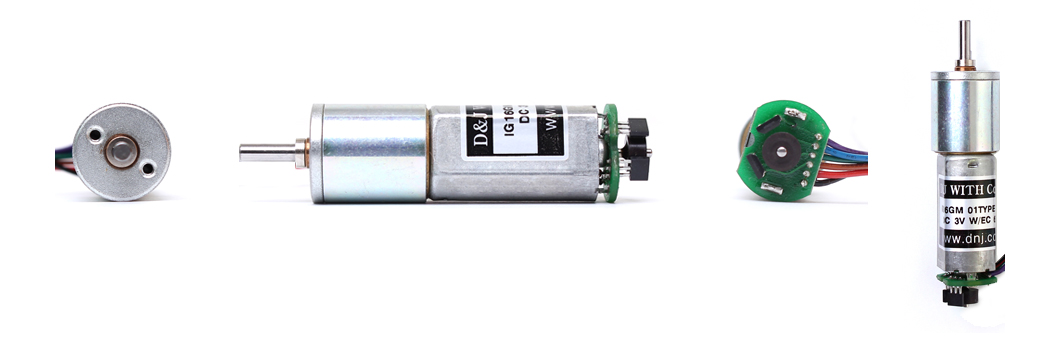

• Planetary Geared Motor with Encoder
  • 엔코더 결합형 유성기어 감속모터
  •
  • IG-16GM 01TYPE (3V) with 2channel Encoder

    제품사양
    - Rated Voltage: DC 3V
    - Rated Torque: Max. 3Kg-cm

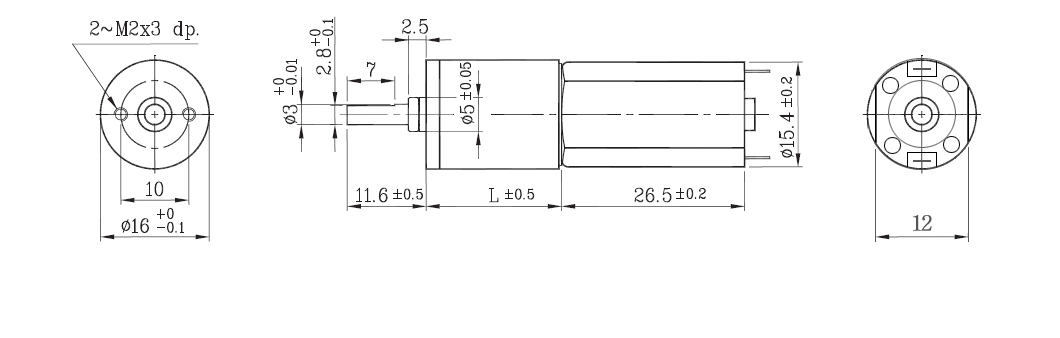

    - Size : Ø15.5 * L 26.5mm
    - Shaft : Ø3mm D-cut 0.2mm
    - Encoder : 6P/R
  • 제품사양
  • - Rated Voltage: DC 3V
    - Rated Torque: Max. 3Kg-cm
    - Size : Ø15.5 * L 26.5mm
    - Shaft : Ø3mm D-cut 0.2mm
    - Encoder : 6P/R
  • 제품상세

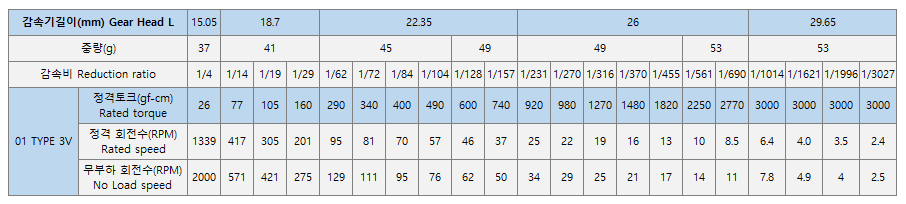

  • 감속기길이(mm) Gear Head L 15.05 18.7 22.35 26 29.65
    중량(g) 37 41 45 49 49 53 53
    감속비 Reduction ratio 1/4 1/14 1/19 1/29 1/62 1/72 1/84 1/104 1/128 1/157 1/231 1/316 1/370 1/455 1/561 1/690 1/1014 1/1621 1/1996 1/3027
    01 TYPE 3V 정격토크(gf-cm)
    Rated torque
    26 77 105 160 290 340 400 490 600 740 920 1270 1480 1820 2250 2770 3000 3000 3000 3000
    정격 회전수(RPM)
    Rated speed
    1339 417 305 201 95 81 70 57 46 37 25 19 16 13 10 8.5 6.4 4.0 3.5 2.4
    무부하 회전수(RPM)
    No Load speed
    2000 571 421 275 129 111 95 76 62 50 34 25 21 17 14 11 7.8 4.9 4 2.5

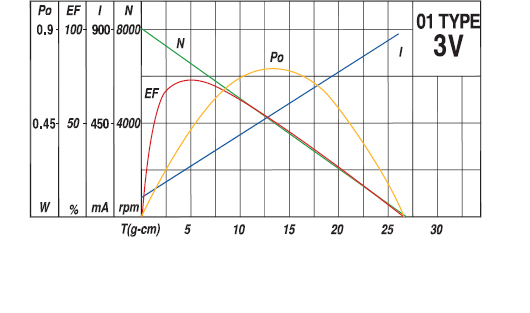

    01 TYPE MOTOR (DC 3V)
    정격 토크 Rated torque 7.3 (gf-cm)
    정격 회전수 Rated speed 5,870 (RPM)
    정격 전류 Rated current 290 (mA)
    무부하 회전수 No load speed 8,000 (RPM)
    무부하 전류 No load current 100 (mA)
    정격 출력 Rated output 0.44 (W)
