• Order Made
  • 주문형 특주제품
  •

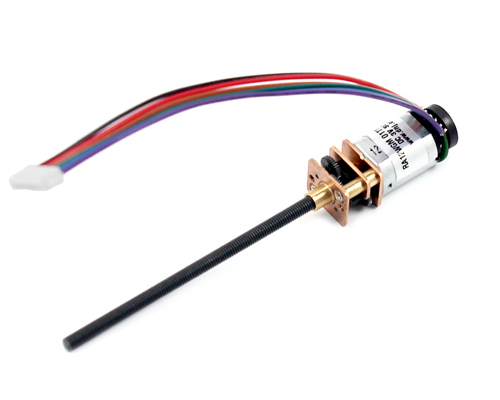

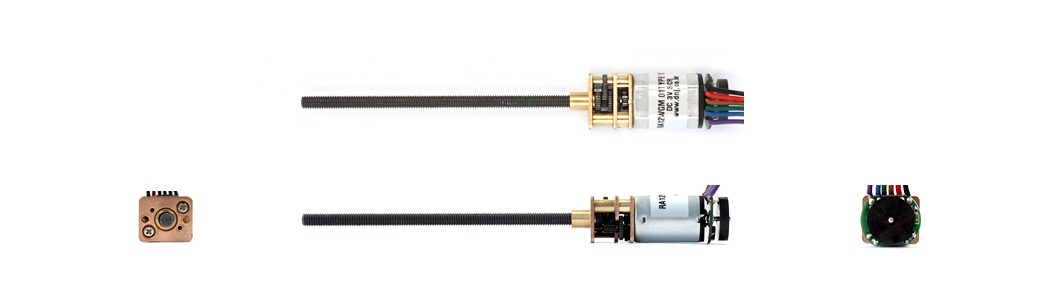

  • RA-12WGM 01TYPE 1/298 SCR (3V) with 2channel Encoder

    제품사양
    Reduction ratio: 1/298
Rated voltage: 3V
Rated torque: 350gf-cm
Rated speed: 46RPM
No load speed: 54RPM
Install motor : 3V / 16,000RPM / 0.287W
Encoder type: 6P/R
Weight: 14.5g
  • 제품사양
  • Reduction ratio: 1/298
Rated voltage: 3V
Rated torque: 350gf-cm
Rated speed: 46RPM
No load speed: 54RPM
Install motor : 3V / 16,000RPM / 0.287W
Encoder type: 6P/R
Weight: 14.5g
  • 제품상세

  •

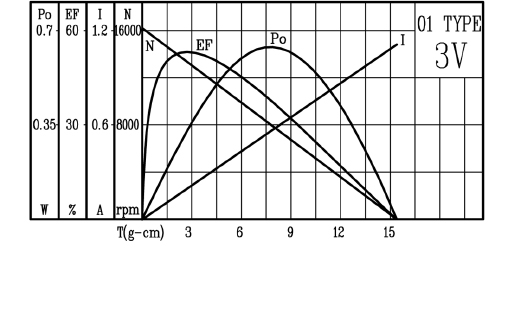

    01 TYPE MOTOR (DC3V)
    정격 토크 Rated torque 2.0 (gf-cm)
    정격 회전수 Rated speed 14,000 (RPM)
    정격 전류 Rated current ≤250 (mA)
    무부하 회전수 No load speed 16,000 (RPM)
    무부하 전류 No load current ≤80 (mA)
    정격 출력 Rated output 0.287 (W)
